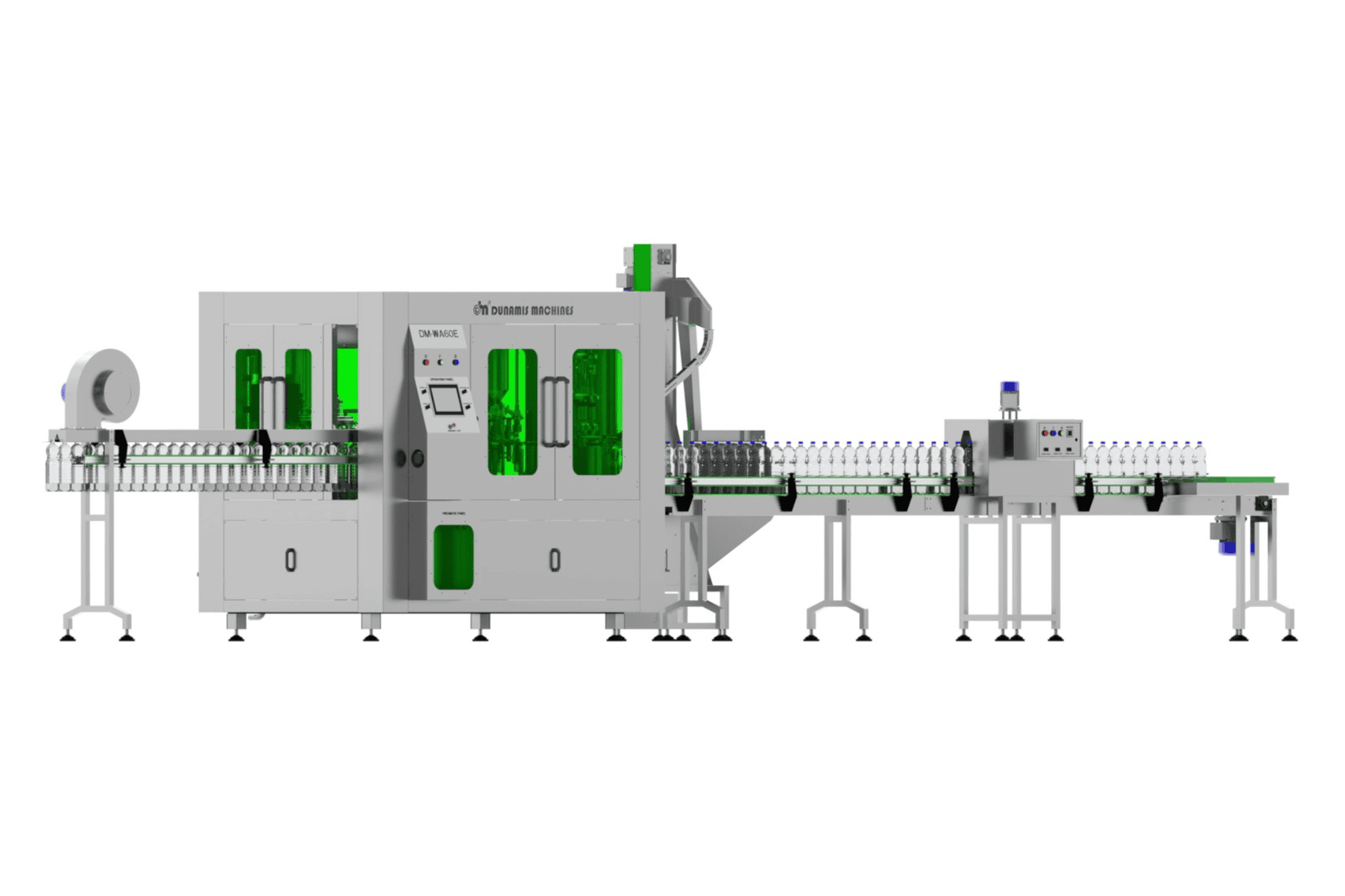

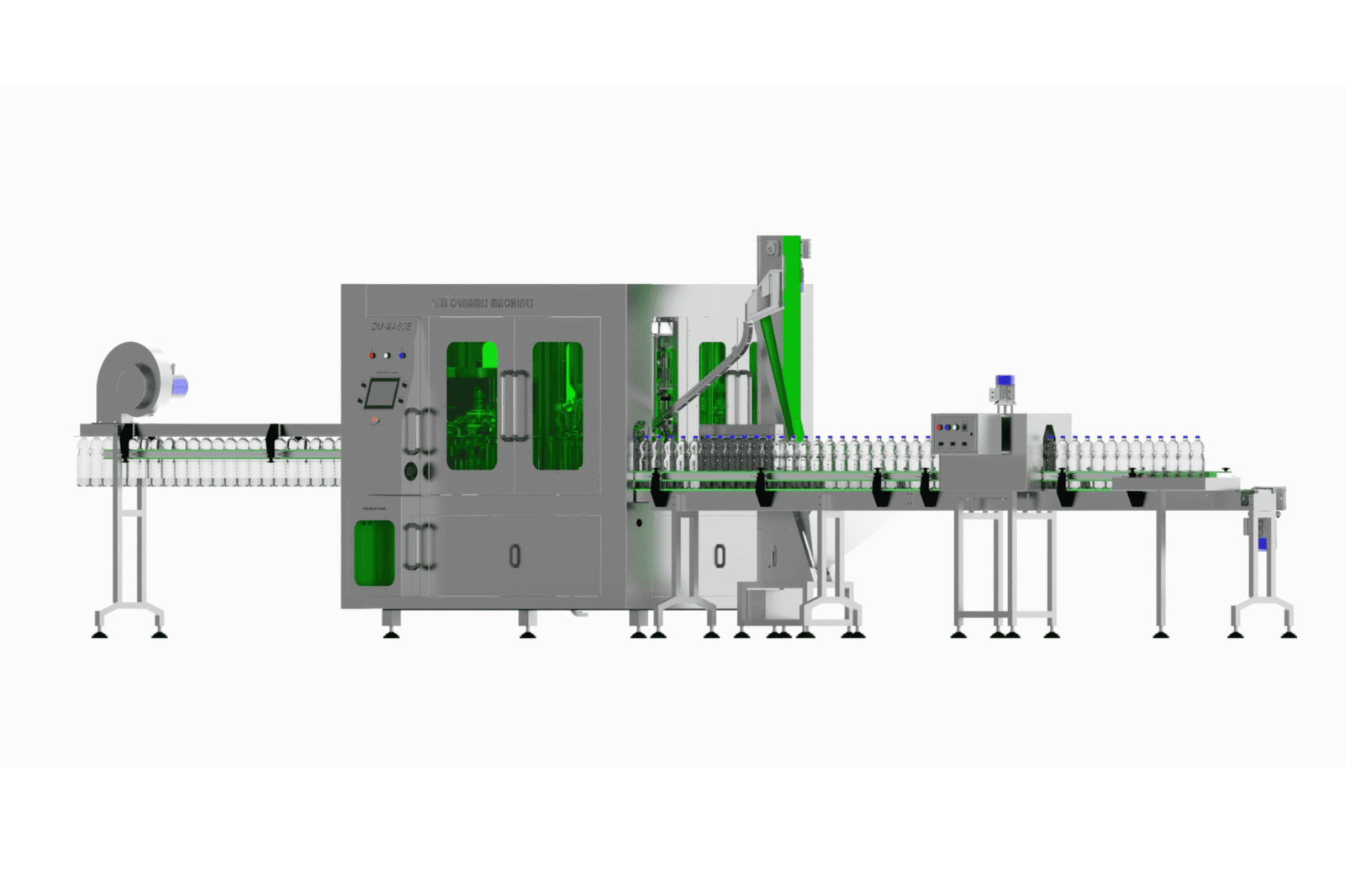

60 BPM Fully Automatic RFC Machine
Our Products
Watch Product Video
The 60 BPM Fully Automatic RFC Machine is a high-performance solution for rinsing, filling, and capping mineral water bottles with precision and efficiency. This 60 BPM Fully Automatic Mineral Water Filling Machine delivers a smooth and seamless workflow, handling up to 60 bottles per minute. Designed for reliability, the 60 BPM Mineral Water Filling Machine ensures consistent output while maintaining hygiene standards. As a trusted 60 BPM Automatic Mineral Water Bottle Filling Machine, it offers energy efficiency, speed, and superior quality for large-scale water bottling operations.
| Category | Details |
|---|---|
| Machine Model | DM-WF60E |
| Machine Category | Fully Automatic |
| Types of Operation | Rinsing, Filling & Capping |
| Production Capacity | 3600 BPH – 4500 BPH |
| Bottle Feeding | Through Air Conveyor |
| Air Conveyor Length | 3 Mtrs |
| Number of Rinsing Nozzles | 10 Nos |
| Filling Volume | 150ml – 2000ml |
| Number of Filling Valves | 8 Nos |
| Number of Capping Head | 4 Nos |
| Out Feed Conveyor Length | 6 Mtrs |
| Shrink Tunnel | Electrical Type |
| Category | Details |
|---|---|
| Types of Bottles Filling | Water Bottle |
| Bottle Neck Diameter | 28mm, Alaska Neck |
| Max Container Diameter | 105mm |
| Max Container Height | 350mm |
| Category | Details |
|---|---|
| Machine Connected Power | 8 HP / 6 KW, 3 Phase (Include Shrink Tunnel) |
| Machine Power Consumption | 5 KWH |
| Type of Electrical Panel | PLC-Based Control Panel with HMI |
| Electrical Supply | 3 Phase with Neutral, 415 Volt, 50 HZ |
How It Works
Preforms are manually loaded into the machine, where they are heated evenly using an advanced heating system to achieve the desired flexibility for molding.
The heated preforms are placed into the mold cavity of the 1 Cavity Semi Automatic 20 Ltr Jar Blow Moulding Machine for shaping.
Compressed air is injected into the preforms, expanding them into the mold to create the desired 20 Ltr PET jar shape.
The newly formed jars are cooled for stabilization and then ejected from the mold, ready for inspection, packaging, or further processing.
Water
Juice
Carbonated Soft Drinks
Food
Beverages
- Produces 60 bottles per minute, meeting the demands of high-speed mineral water production.
- Ensures hygienic rinsing and precise filling, maintaining superior product quality.
- Reduces labor costs and increases productivity with its fully automated process.
- Guarantees leak-proof packaging with an advanced automated capping system.
- Minimizes water wastage with its efficient and accurate filling system.
- Offers consistent, reliable performance, ideal for large-scale operations.
Key Features of Dunamis Machines
High-Speed Production
Handles up to 60 bottles per minute (BPM) with automated rinsing, filling, and capping operations.
Precision Filling System
Ensures accurate and consistent water levels with minimal wastage during the filling process.
Hygienic Bottle Rinsing
Equipped with high-pressure water jets for thorough bottle cleaning, ensuring maximum hygiene.
Automated Capping System
Tightly seals bottles with precision, guaranteeing leak-proof and tamper-free packaging.
User-Friendly Operation
Fully automatic system with easy-to-use controls for smooth operation and minimal manual intervention.
Durable and Efficient Design
Built with high-quality materials for long-lasting performance and energy-efficient operation.
