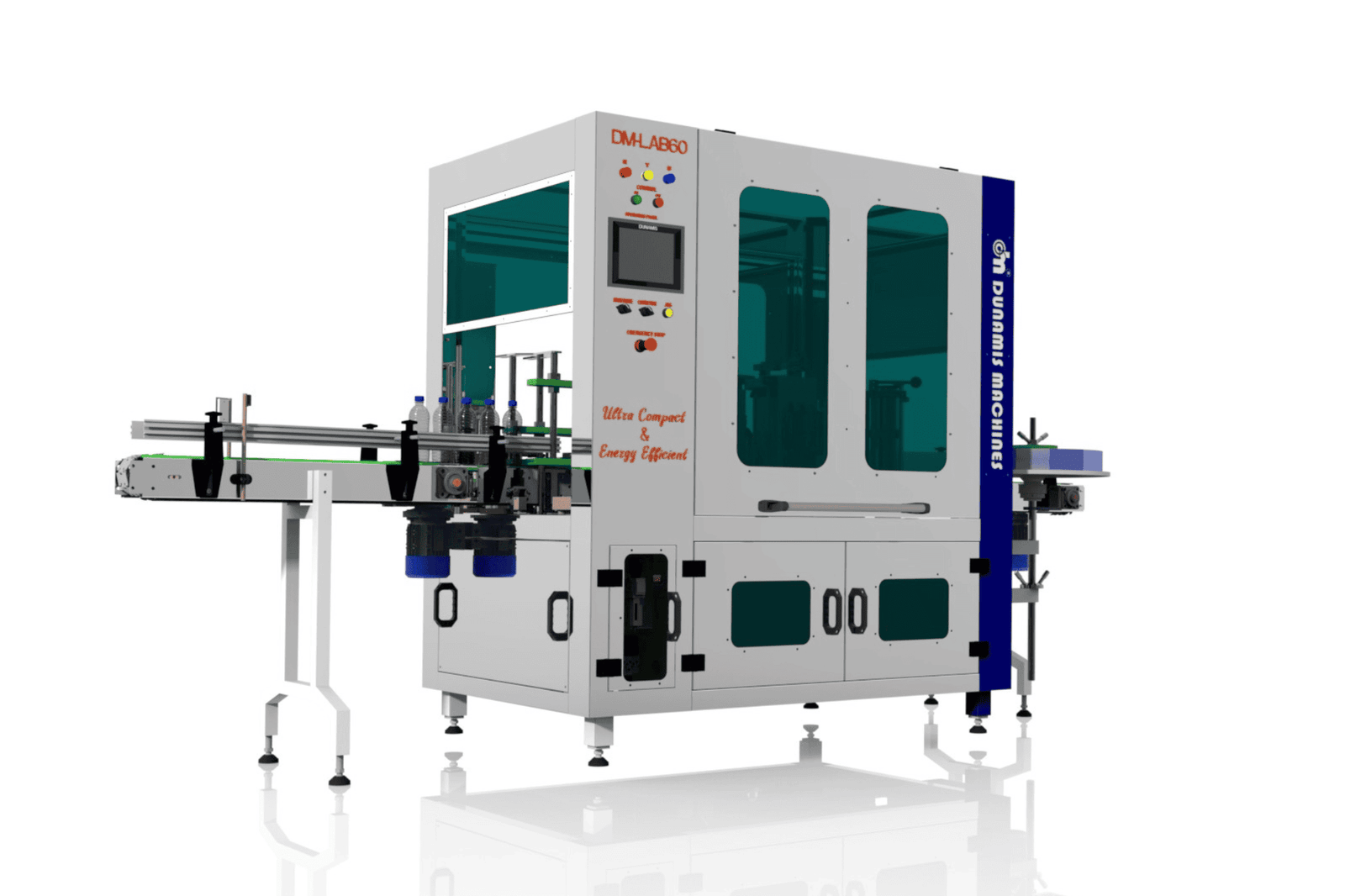

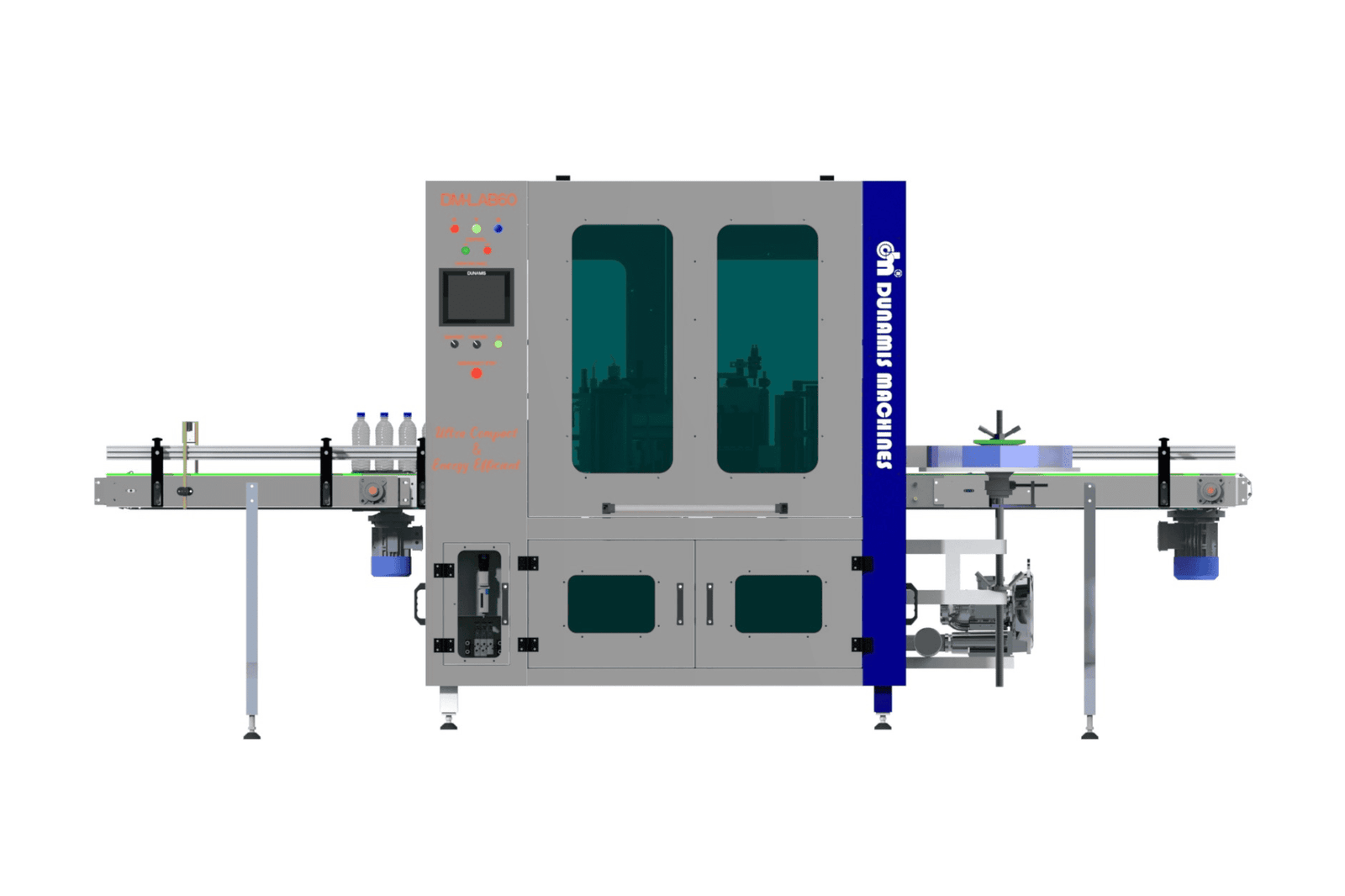

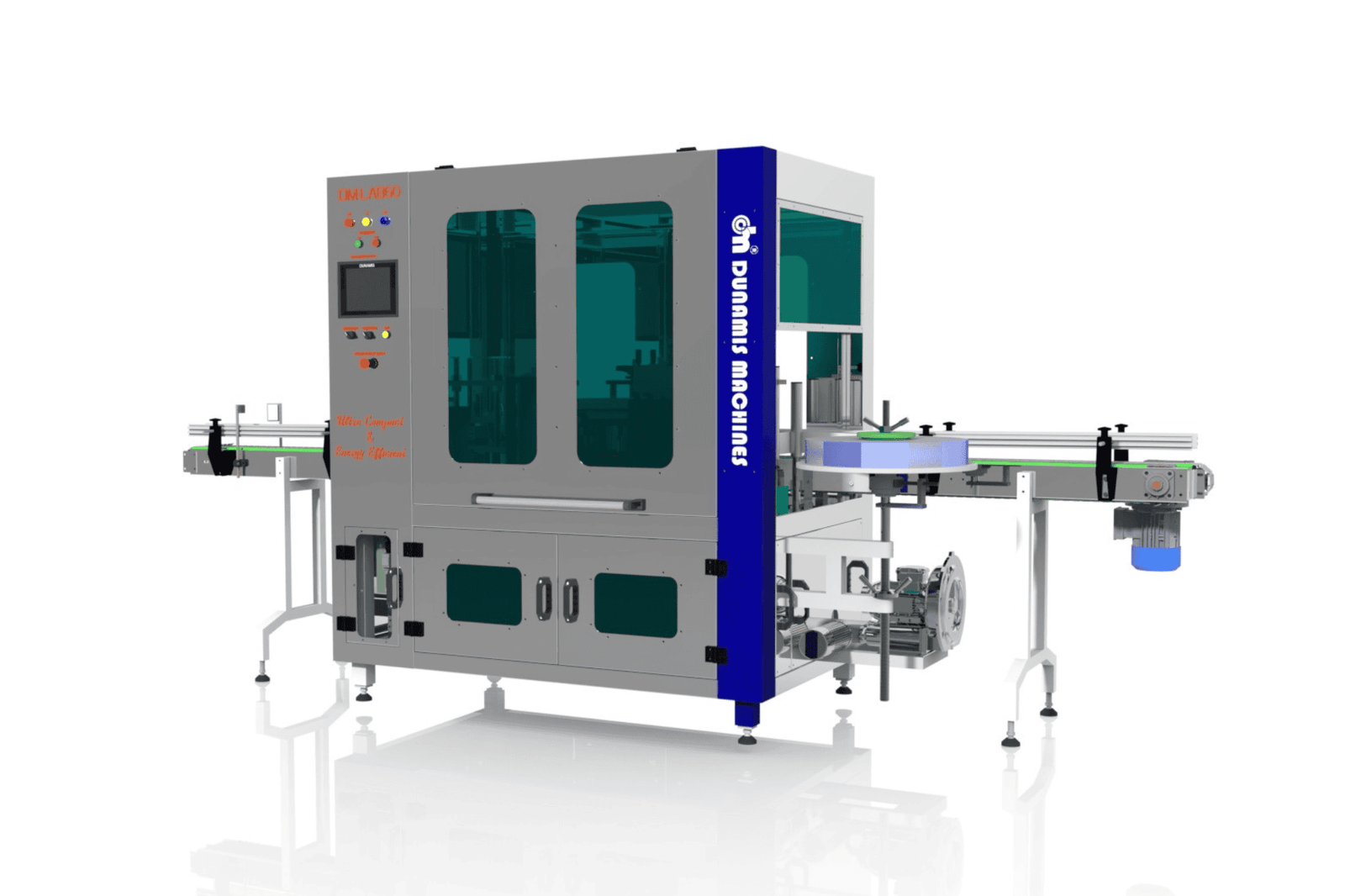

60 BPM Fully Automatic BOPP Labeling Machine
60 BPM Fully Automatic BOPP Labeling Machine
Our Products
2 Cavity High Speed Semi Automatic PET Blow Moulding Machine
2 Cavity Fully Automatic PET Blow Moulding Machine
3 Cavity Fully Automatic PET Blow Moulding Machine
3 Cavity Fully Automatic Online PET Blow Moulding Machine
4 Cavity Fully Automatic Online PET Blow Moulding Machine
3 Cavity Fully Automatic Linear Online Pet Blow Moulding Machine
1 Cavity Semi Automatic 20 Ltr Jar Blow Moulding Machine
60 BPM Fully Automatic RFC Machine
120 BPM Fully Automatic RFC Machine
200 BPM Fully Automatic RFC Machine
60 BPM Fully Automatic CSD Soda Filling Machine
120 BPM Fully Automatic CSD Soda Filling Machine
200 BPM Fully Automatic CSD Soda Filling Machine
60 BPM Fully Automatic BOPP Labeling Machine
120 BPM Fully Automatic BOPP Labeling Machine
200 BPM Fully Automatic BOPP Labeling Machine
60 BPM Fully Automatic Turnkey Project for Water Upto 1 Ltr
60 BPM Fully Automatic Turnkey Project for Water Upto 2 Ltr
120 BPM Fully Automatic Turnkey Project for Water Upto 1 Ltr
120 BPM Fully Automatic Turnkey Project for Water Upto 2 Ltr
60 BPM Fully Automatic Turnkey Project for CSD
120 BPM Fully Automatic Turnkey Project for CSD
60 BPM Fully Automatic Turnkey Project for Goli Soda
120 BPM Fully Automatic Turnkey Project for Goli Soda
Watch Product Video
The 60 BPM Fully Automatic BOPP Labeling Machine is designed for high-speed and precision labeling, handling up to 60 bottles per minute. This advanced 60 BPM BOPP Labeling Machine ensures seamless and accurate label application on bottles, delivering a professional finish every time. With its user-friendly interface and automated operations, the 60 BPM Automatic BOPP Labeling Machine guarantees efficiency, consistency, and minimal downtime. Ideal for large-scale production, it is perfect for businesses aiming for superior labeling performance.
| Category | Details |
|---|---|
| Machine Model | DM-LAB60 |
| Machine Category | Automatic |
| Bottle Feeding | Automatic from Filling Machine Conveyor |
| Production Capacity | 3600 BPH – 4500 BPH |
| Cutting & Gluing | Automatic |
| Conveyor Length | 2.5 Mtrs |
Let me know if you need any other information!
| Category | Details |
|---|---|
| Type of Bottles | Same Size and Height |
| Max. Bottle Volume | 2000ml |
| Diameter of Bottle | 45mm – 105mm |
| Max. Height of the Bottle | 350mm |
Let me know if you’d like further modifications!
| Category | Details |
|---|---|
| Type of Heaters | SS Pipe Heaters, Rope Heaters & Plate Heater |
| Total No. of Heaters | 4 Nos |
| Total Heaters Power | 3000 Watts, 1 Phase |
| Total Motors Power | 3.75 HP, 3 Phase |
| Machine Connected Power | 5 KW, 3 Phase |
| Total Power Consumption | 4 KWH (Unit) (Include Accessories) |
Let me know if any further adjustments are needed!
| Category | Details |
|---|---|
| Working Pressure | 6 Bar |
| Air Consumption | 4 CFM Approx |
| Required Compressor Capacity | 3 HP / 12 Bar / 8 CFM |
| Category | Details |
|---|---|
| Working Pressure | 6 Bar |
| Air Consumption | 4 CFM Approx |
| Required Compressor Capacity | 3 HP / 12 Bar / 8 CFM |
How It Works
Empty bottles are fed into the machine automatically from the filling machine conveyor, ensuring smooth and consistent input flow.
Labels are precisely cut and glued using an advanced SS Pipe Heater system, maintaining accuracy and efficiency.
The machine applies labels onto bottles with precision, ensuring proper alignment and a seamless finish.
Once labeled, the bottles are smoothly transferred to the output conveyor, ready for the next stage in production.
Water
Juice
Carbonated Soft Drinks
Food
Beverages
- Achieves output rates of 3600 - 4500 BPH (DM-LAB60) and 7200 - 9000 BPH (DM-LAB120), meeting large-scale production needs.
- Ensures precise label application for bottles with a width range of 250mm to 110mm for consistent quality.
- Operates at low power consumption of 4KWH (DM-LAB60) and 5KWH (DM-LAB120), reducing energy costs.
- Compatible with bottles of varying diameters and heights, supporting up to 4000ml volume for versatile production.
- Fully automated system minimizes manual effort, ensuring smooth operation and improved production efficiency.
- Reliable pneumatic system with 6Bar pressure and optimized air consumption delivers consistent and durable performance.
Key Features of Dunamis Machines
High-Speed Operation
Capable of producing up to 4500 BPH (DM-LAB60) and 9000 BPH (DM-LAB120) for efficient production.
Accurate Label Application
Precision labeling with consistent application across bottles of 250mm to 400mm height.
Advanced Heating System
Equipped with SS Pipe Heaters and Rope Heaters to deliver consistent performance.
Low Power Consumption
Energy-efficient operation with 4KWH (DM-LAB60) and 5KWH (DM-LAB120) total power usage.
Automatic Conveyor Integration
Smooth bottle feeding and discharge through the 3.5m filling machine conveyor system.
Versatile Compatibility
Handles bottles of various volumes, diameters, and heights for flexible production requirements.
