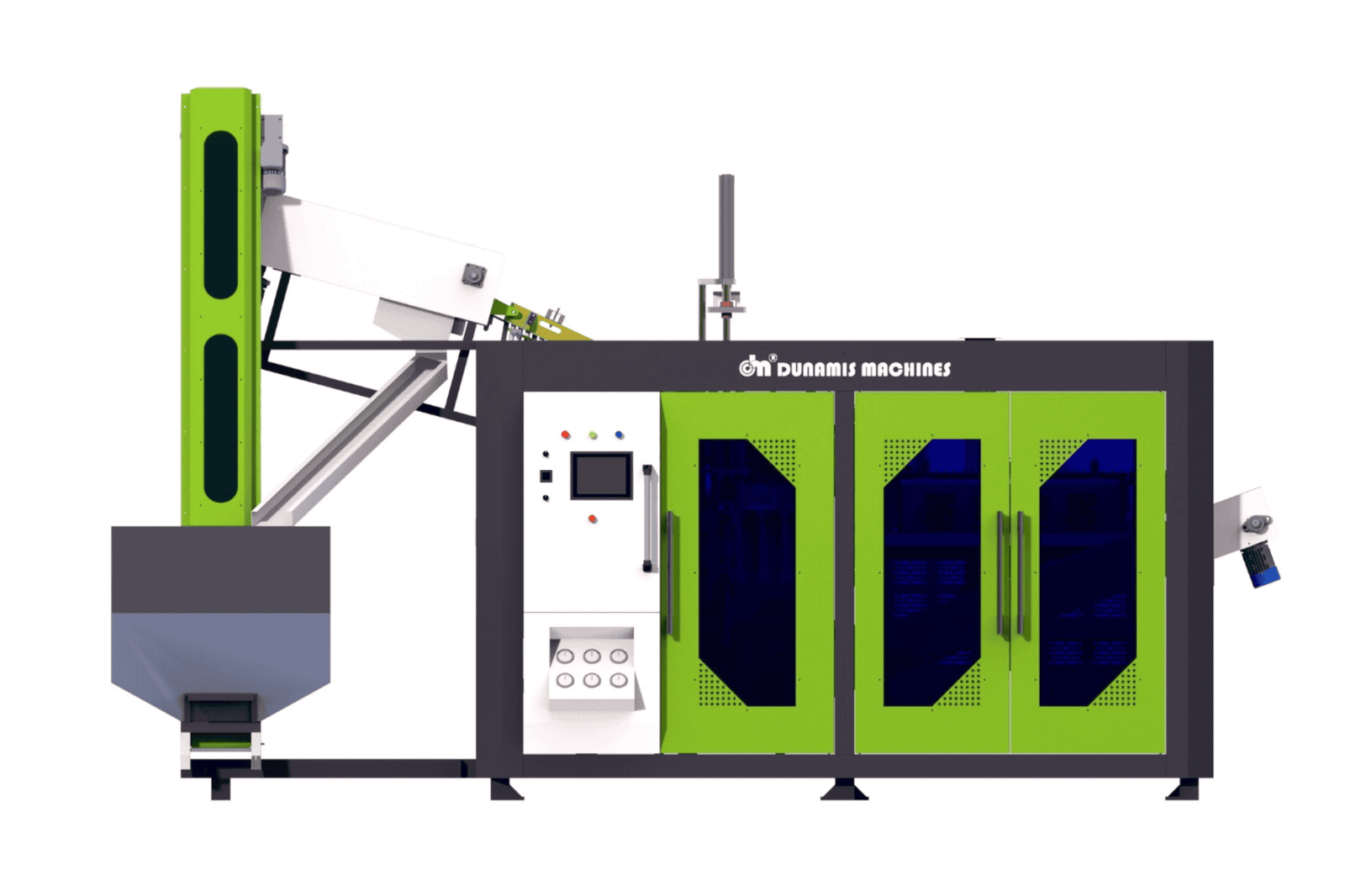

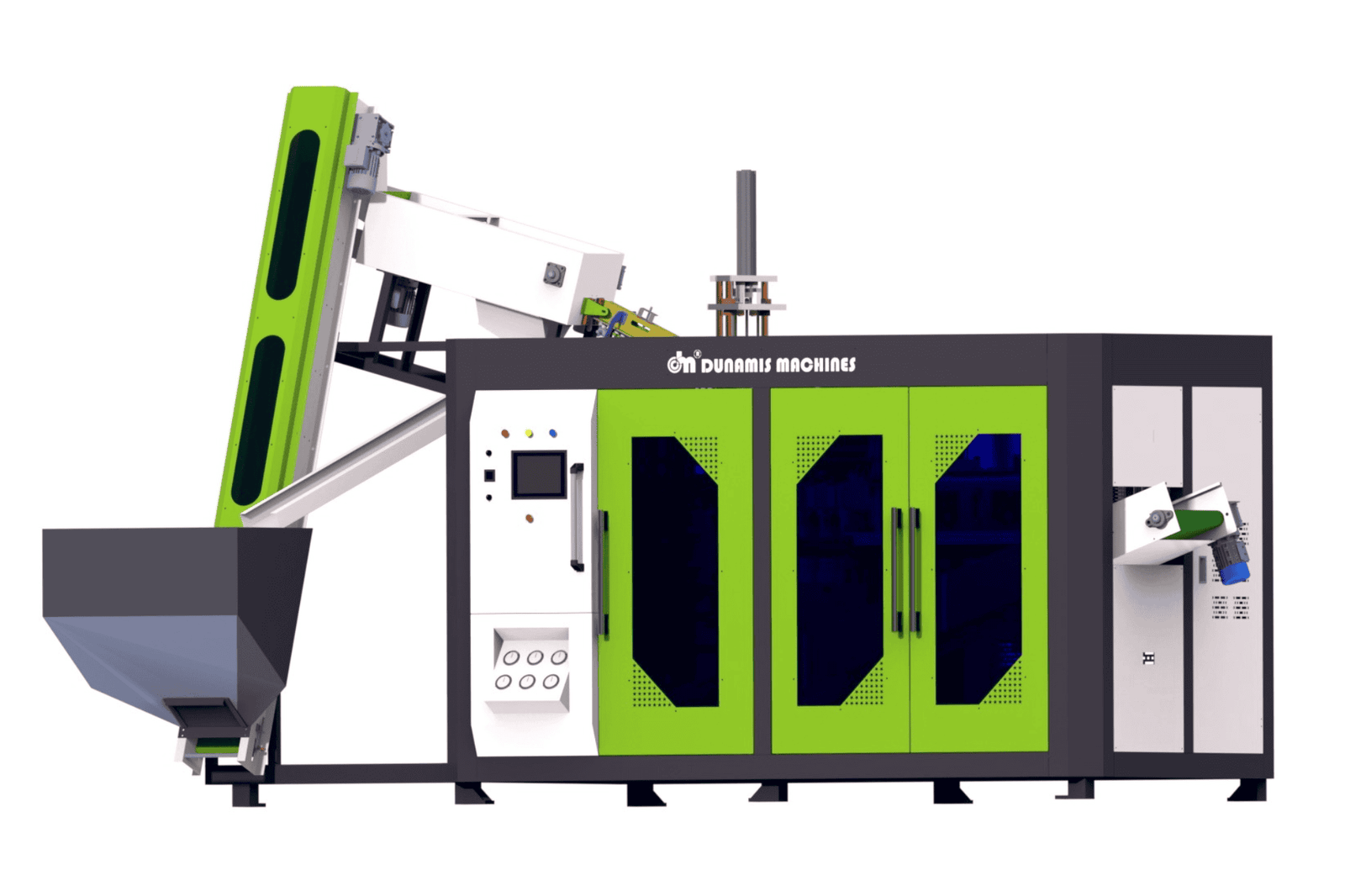

3 Cavity Fully Automatic PET Blow Moulding Machine
Our Products
Watch Product Video
The 3 Cavity Fully Automatic PET Blow Moulding Machine is a high-efficiency solution for producing PET bottles with precision and speed. Designed to deliver exceptional performance, this 3 Cavity Fully Automatic Pet Bottle Making Machine ensures consistent production of bottles in various shapes and sizes. With automated controls, it reduces manual intervention, making operations seamless. The 3 Cavity Fully Automatic PET Blowing Machine is ideal for businesses seeking reliable and energy-efficient solutions. This 3 Cavity Fully Automatic Blowing Machine guarantees superior quality and maximum productivity.
| Category | Details |
|---|---|
| Machine Model | DM-BKFAE3 |
| Machine Category | Fully Automatic |
| No. of Cavities | 3 Cavity |
| Production Capacity (Bottles/Hour) | 3600 BPH (for 1000ml) |
| Blowing Capacity (Min-Max) | 100ml – 1000ml |
| Type of Bottles Blowing | Water, Juice & CSD |
| Types of Preform | Alaska & PCO |
| Bottle Outlet | Through Belt Conveyor |
| Size of the Mould (W x T) | 120mm x 310mm |
| Category | Details |
|---|---|
| Neck Diameter | 28mm |
| Max. Diameter of Bottle | 82mm |
| Max. Height of the Bottle | 270mm |
| Category | Details |
|---|---|
| Pre-Heating System | Near Infrared |
| No. of Heaters | 12 Nos |
| Heater Capacity | 2000 Watts |
| Machine Connected Power | 9KW, 3 Phase |
| Machine with Accessories Connected Power | 38 KW, 3 Phase |
| Total Power Consumption with Accessories | 26 KWH (units) |
| Category | Details |
|---|---|
| Blowing Pressure | 20 Bar |
| Working Pressure | 6 Bar |
| Air Consumption | 70 CFM |
| Category | Details |
|---|---|
| High Pressure Compressor (Duplex) | 30HP/25Bar/84CFM |
| Air Dryer | 100CFM/25Bar |
| Water Chiller | 3.5Ton@10°C |
| Cooling Tower | 30TR |
How It Works
Preforms are automatically fed into the heating system, where they are uniformly heated for shaping.
Heated preforms are placed into molds, and compressed air expands them to achieve the desired bottle shape.
Formed bottles are cooled using air or water systems to ensure they retain their precise shape.
The completed bottles are released from the mold and moved for inspection, packaging, or further handling.
Water
Juice
Carbonated Soft Drinks
Food
Beverages
- High production capacity of up to 3600 bottles per hour ensures efficient output.
- Optimized power consumption between 26 to 31 KWH reduces operational costs.
- Supports versatile bottle production with a blowing capacity ranging from 100ml to 2000ml.
- Uniform and precise heating is achieved with advanced near-infrared technology.
- Automated bottle transfer through belt or air conveyors ensures smooth operation.
- Reliable performance with a robust pneumatic system delivering 20Bar blowing pressure.
Key Features of Dunamis Machines
Advanced Control Systems
Equipped with sophisticated control systems, these machines ensure precise control over the moulding process, allowing for real-time monitoring and adjustments to maintain consistent product quality.
Robust Construction
Built with high-quality materials, the machines are designed to withstand rigorous use, enhancing their durability and reliability.
Energy Efficiency
Incorporating energy-efficient components reduces power consumption, lowering operational costs while maintaining high performance.
Quick Mold Changeover
Features like the blowing toggle system facilitate easy and quick mold changes, reducing downtime and increasing productivity.
User-Friendly Interface
An intuitive interface simplifies operation, reducing the need for extensive training and minimizing the risk of human error.
High-Quality Components:
Utilization of components from reputable brands ensures reliability and longevity. For instance, electrical systems from Schneider Electric (France), pneumatic systems from Festo (Germany), and sensors from P&F (Germany) are used.
