Product Detail

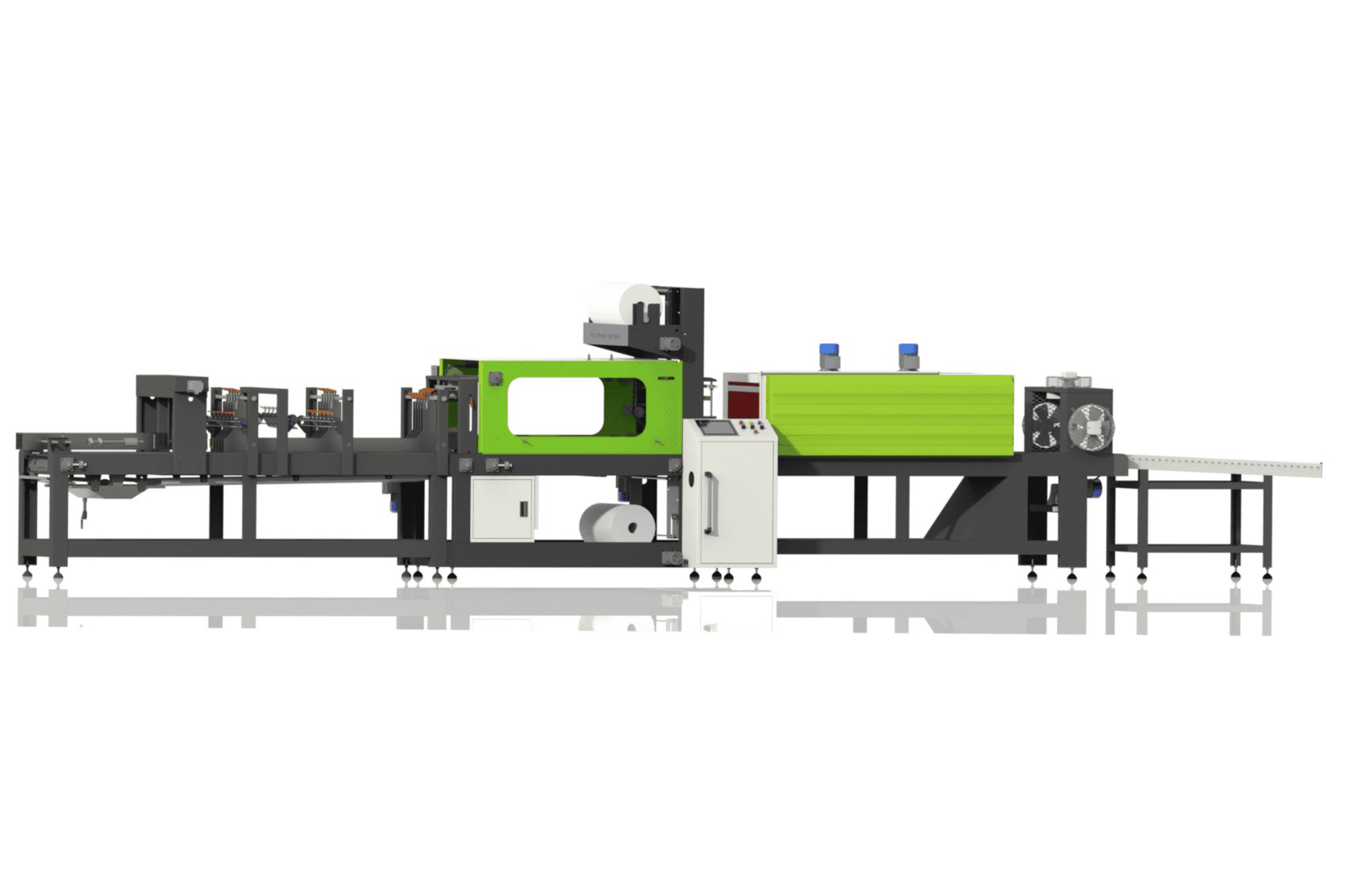

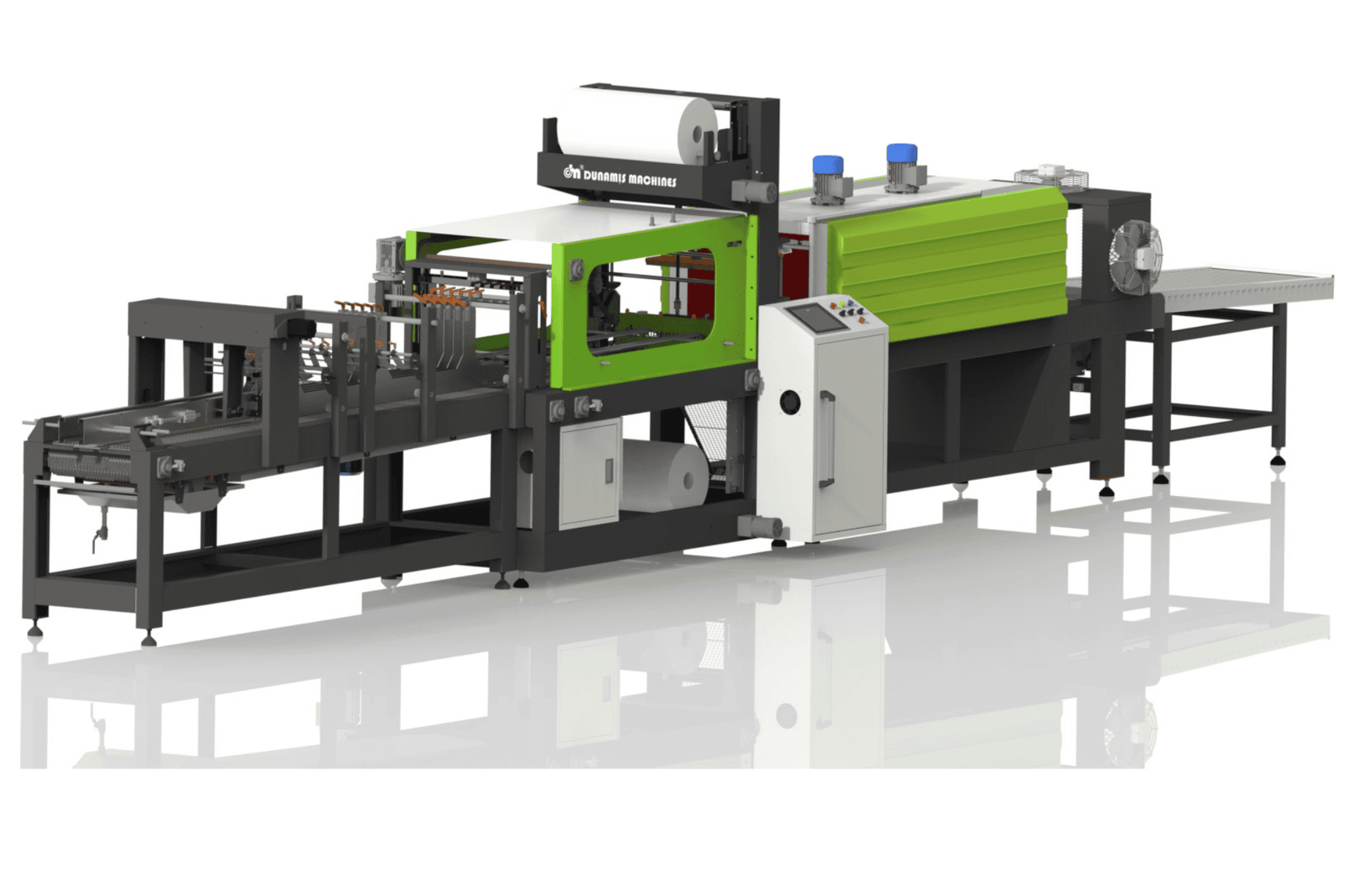

120 BPM Fully Automatic Shrink Wrapping Machine
Our Products
Watch Product Video
The 120 BPM Fully Automatic Shrink Wrapping Machine is a high-performance solution for efficient and precise bottle packaging, handling up to 120 bottles per minute. This advanced 120 BPM Shrink Wrapping Machine ensures secure and uniform shrink wrapping, delivering professional results every time. With its automated operation, the 120 BPM Automatic Wrapping Machine minimizes manual intervention and maximizes productivity. Ideal for large-scale production, the 120 BPM Shrink Packaging Machine offers reliability, energy efficiency, and seamless performance, making it perfect for industries requiring high-speed packaging solutions.
| Specification | Details |
|---|---|
| Machine Model | DM-SWFA120 |
| Machine Category | Fully Automatic |
| Production Capacity | 8 – 12 Shrunk Boxes, 7200 BPH – 8000 BPH |
| Matrix Size (Changeable) | 6 x 8 (300 ml), 4 x 6 (500 ml), 4 x 3 (1000 ml), 3 x 3 (2000 ml) |
| Bottle Collateral System | Automatic |
| Shrunk Box Outlet | Through Roller Conveyor |
| Specification | Details |
|---|---|
| Type of Bottles | Same Size and Height |
| Max. Bottle Volume | 2000 ml |
| Max. Diameter of Bottle | 102 mm |
| Max. Height of the Bottle | 350 mm |
| Specification | Details |
|---|---|
| Type of Heaters | SS Tube Porcelain Heater |
| No. of Heaters | 9 Nos |
| Heaters Power | 4500 Watts, 1 Phase |
| Machine Connected Power | 18 KW, 3 Phase |
| Total Power Consumption | 15 KWH (Unit) (Include Accessories) |
| Specification | Details |
|---|
| Working Pressure | 6 Bar |
| Air Consumption | 18 CFM Approx |
| Required Compressor Capacity | 7.5 HP / 12 Bar / 21 CFM |
How It Works
Bottles are fed into the machine using a conveyor system, where an infeed stopper and lineup guide ensure precise alignment into rows.
The bottles are pushed forward, and shrink film is wrapped around them while the system applies adhesive or seals the edges securely.
The wrapped bottles pass through an advanced shrink tunnel where controlled hot air shrinks the film tightly around the bottles, ensuring a perfect finish.
Cooling fans stabilize the wrapped bundles, and the final product is smoothly discharged via the wire mesh conveyor for further processing or packaging.
Water
Juice
Carbonated Soft Drinks
Food
Beverages
- Handles up to 120 bottles per minute, making it ideal for large-scale packaging operations.
- Ensures precise alignment and smooth bottle flow with an automated infeed and lineup system.
- Features an advanced shrink tunnel design for uniform wrapping and enhanced package rigidity.
- Delivers up to 20% energy savings with an efficient heating system.
- Customizable settings for shrinkage control through HMI-based heater and conveyor speed adjustments.
- Built with durable components like an SS wire mesh conveyor and long-life PU seal cylinders, ensuring long-term reliability and low maintenance.
Key Features of Dunamis Machines
High-Speed Production
Capable of wrapping up to 120 bottles per minute, ensuring optimal productivity for large-scale operations.
Advanced Shrink Tunnel Design
Allows uniform hot air flow from all directions, providing tightly wrapped and secure packaging.
Energy-Efficient Heating System
The heating system ensures uniform shrinkage while saving up to 20% power, reducing operational costs.
Precise Shrinkage Control
Features an HMI control panel to adjust tunnel drive speed and heater temperature for customized packaging results.
Automated Infeed and Alignment
Equipped with an infeed stopper and lineup guide to streamline bottle feeding and alignment for accurate wrapping.
Robust and Durable Build
Includes an SS wire mesh conveyor and long-lasting PU seal cylinders for smooth, reliable, and low-maintenance performance.
