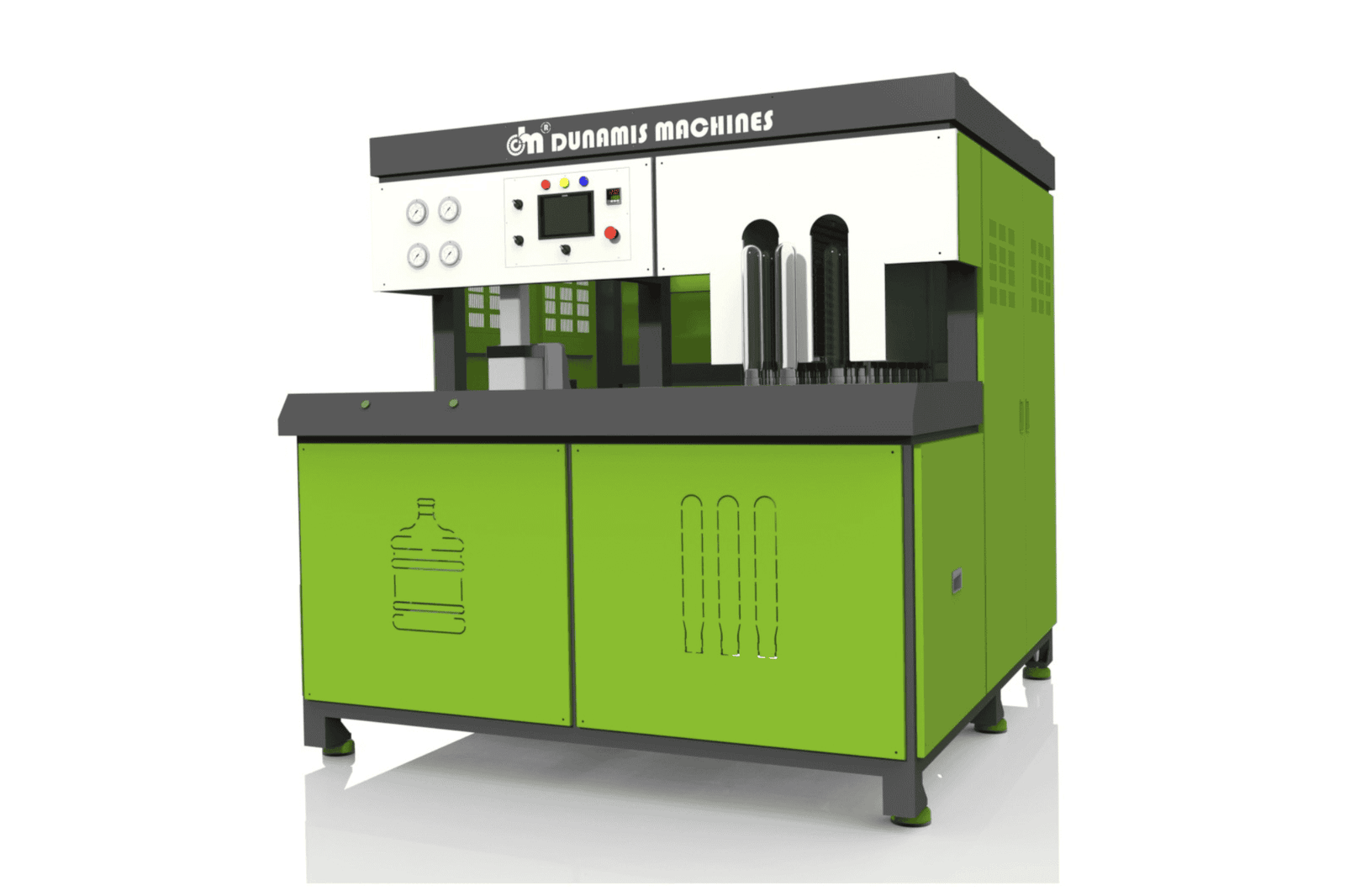

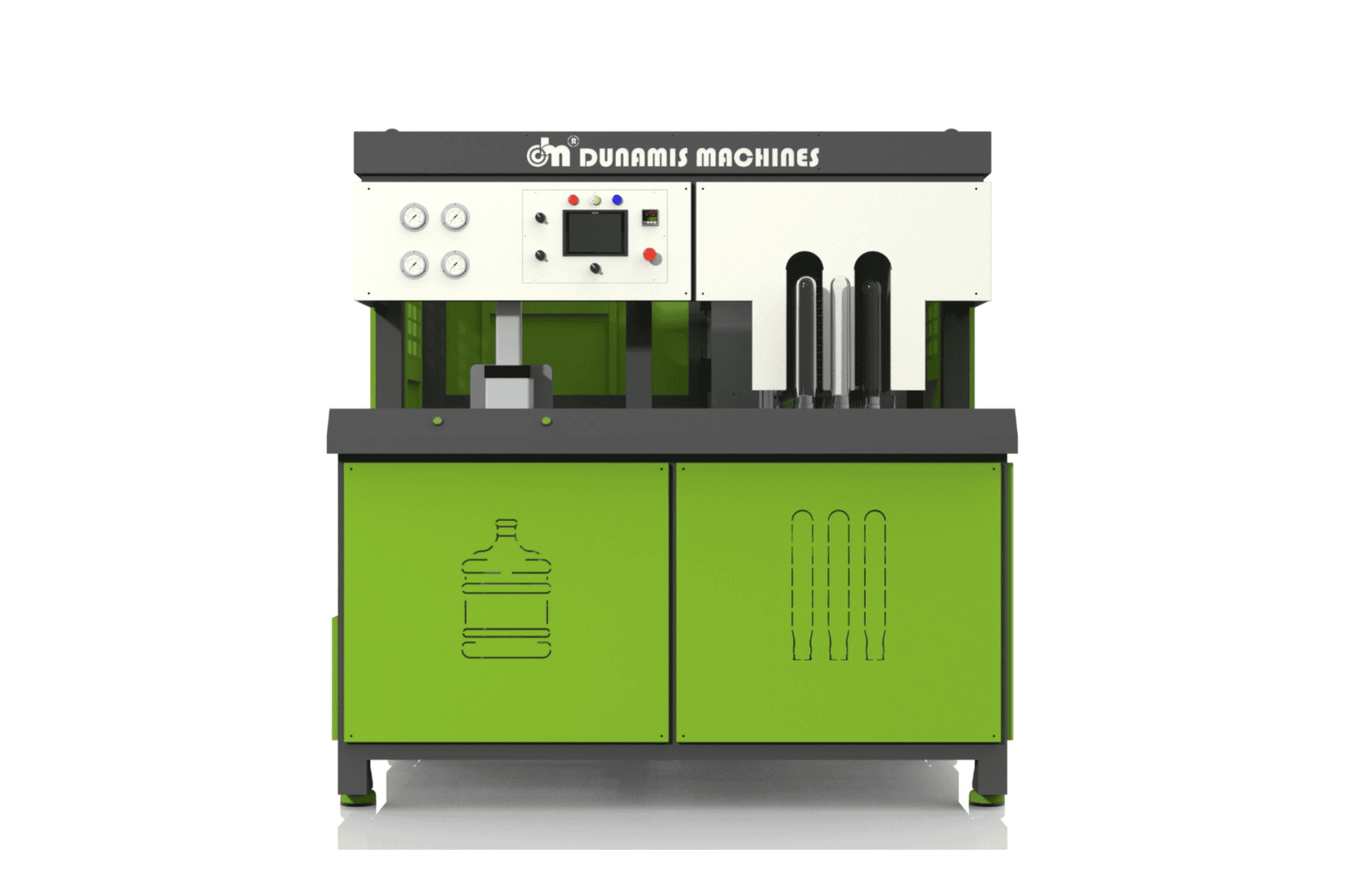

1 Cavity Semi Automatic 20 Ltr Jar Blow Moulding Machine
Our Products
Watch Product Video
The 1 Cavity Semi Automatic 20 Ltr Jar Blow Moulding Machine is designed for efficient and precise production of PET jars. This 20 Ltr PET Jar Blow Moulding Machine ensures consistent quality, making it ideal for producing large-capacity jars. The PET Jar Blow Moulding Machine is user-friendly, energy-efficient, and reliable for small to medium-scale operations. With its advanced features, this Jar Blow Moulding Machine guarantees seamless performance. As a trusted Jar Blow Machine, it delivers durability, accuracy, and excellent productivity for PET jar manufacturing.
| Category | Details |
|---|---|
| Machine Model | DM-JRSE1 |
| Machine Category | Semi Automatic |
| No of Cavities | 1 Cavity |
| Production Capacity (Bottles/Hour) | 120 Jars/Hour |
| Blowing Capacity (Min-Max) | 20 Ltr |
| Bottle Outlet | Manual |
| Size of the Mould (W x T) | 340mm x 330mm |
| Category | Details |
|---|---|
| Type of Bottles Blowing | Water |
| Types of Preform | Plain & Jar Type |
| Max. Neck Diameter | 55mm |
| Max. Diameter of Bottle | 275mm |
| Max. Height of the Bottle | 540mm |
| Category | Details |
|---|---|
| Pre-Heating System | Near Infrared |
| No. of Heaters | 16 Nos |
| No. of Pipe Heaters | 2 Nos |
| No. of Inner Heaters | 1 Nos |
| IR Heater Capacity | 1500 Watts, 220V AC |
| Machine Connected Power | 10KW, 3 Phase |
| Machine with Accessories Connected Power | 34KW (46HP), 3 Phase |
| Total Power Accessories Consumption | 22KWH (Units) |
| Category | Details |
|---|---|
| Blowing Pressure | 20 Bar |
| Working Pressure | 6 Bar |
| Air Consumption | 55 CFM |
| Category | Details |
|---|---|
| Compressor Capacity (High Pressure) | 25HP / 25Bar / 72CFM |
| Air Dryer Capacity | 100CFM @ 25Bar |
| Water Chiller Capacity | 2.5 Ton @ 10°C |
| Cooling Tower | 20TR |
How It Works
Preforms are manually loaded into the machine, where they are heated evenly using an advanced heating system to achieve the desired flexibility for molding.
The heated preforms are placed into the mold cavity of the 1 Cavity Semi Automatic 20 Ltr Jar Blow Moulding Machine for shaping.
Compressed air is injected into the preforms, expanding them into the mold to create the desired 20 Ltr PET jar shape.
The newly formed jars are cooled for stabilization and then ejected from the mold, ready for inspection, packaging, or further processing.
Water
Juice
Carbonated Soft Drinks
Food
Beverages
- Produces up to 120 jars per hour, ensuring high efficiency for 20 Ltr jar production.
- Supports jars with a maximum height of 540mm and diameter of 275mm for versatility.
- Features a near-infrared heating system for precise and uniform heating of preforms.
- Low power consumption at 22 KWH, offering cost-effective operation.
- Auto drop bottle outlet reduces manual handling and improves productivity.
- Reliable pneumatic system with 20Bar blowing pressure for consistent jar shaping.
Key Features of Dunamis Machines
High Production Capacity
Capable of producing 120 jars per hour, ideal for medium-scale operations.
Large Blowing Capacity
Supports 20 Ltr jar production with maximum dimensions of 540mm height and 275mm diameter.
Efficient Heating System
Equipped with 16 near-infrared heaters and advanced heating controls for uniform preform heating.
User-Friendly Operation
Semi-automatic design with an auto drop outlet for easy and seamless jar handling.
Optimized Power Usage
Operates at 10KW connected power with accessories consuming only 22 KWH.
Robust Air System
Designed with a 20Bar blowing pressure and air consumption of 55CFM for consistent performance.
